Whatever you are up to, with IC the sky's the limit

Thermography for everyone – always fully equipped

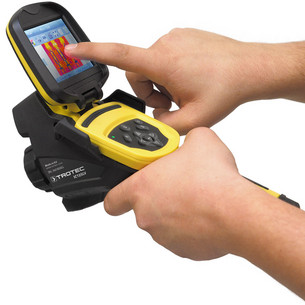

Dual key touchscreen control

IC085LV and IC125LV represent the state of the art in terms of professional real-time thermal imaging cameras with advanced 50-Hz technology of the successful IC series, allowing the application of high-quality thermography systems even for smaller budgets.

Thanks to numerous equipment features these thermal imaging cameras not only quickly and effectively create transparency in thermographic measuring tasks, the model structure is also refreshingly transparent:

Both cameras are delivered fully equipped, the only difference is the temperature measuring range!

We have listed the most important equipment features of the IC085LV and IC125LV in the table below, including a description of how you can benefit from them in practice:

Equipment features and practical benefit:

Equipment feature

Your practical benefit
High refresh rate of 50/60 Hz The high refresh rate ensures a permanent real-time thermal image reproduction. Not a single image and thus no important thermographic information is omitted in real-time presentations.
Fully radiometric thermal images Precise temperature measurement in the entire picture, no interpolation interferences. For every single pixel the sensor has an individual measuring spot, supplying accurate temperature values for this pixel only. The absolute temperature can be read pixel for pixel.
High thermal sensitivity Reliable diagnoses even with the smallest changes in temperature. Even the smallest changes in temperature become apparent. A high sensitivity reduces thermal noise in the infrared image. The smaller the value, the better the quality of the image.
Uncooled microbolometer sensors No movable sensor parts, extreme durability, clear and detailed images. Small size, light weight, low power consumption, completely maintenance-free.
Image sensor with 384 x 288 measuring spots Maximum measurement accuracy due to 110,592 independent temperature measuring spots. With this detector you can be located more than twice as far away from the target than with a 160 x 120 detector and still measure with the same accuracy.
High geometric resolution of 1.1 mrad Defines the solid angle measure for the smallest resolvable measuring spot. The smaller this value, the more precise are the measurement results. At a camera-to-subject distance of one metre the individual measuring spot of each thermal pixel on principle has a diameter of 1.1 mm.
Hinged 3.5-inch LCD display Optimum ergonomic view from every angle. Fully folded it protects monitor and operator keypad from dirt.
Dual key touchscreen control Owing to the combination of control keys and capacitive touchscreen it has become still easier and more intuitive to use the thermal imaging camera. This way, you can meet your target faster and use your camera more effectively.
Automatic temperature tracking (hot/cold spot) Coldest or hottest spots on the measuring objects are detected in real time and displayed automatically.
Temperature alarm Acoustic and visual alarm help you to faster detect critical areas. Also ideal for dew point detection at surfaces.
Robust two-component construction with IP54 type of protection Robust housing, dust- and splash-proof – ideal for rough industrial applications and all kinds of weather when measuring outside. Thanks to two-component construction with integrated rubber protectors impact-proof to a drop height of 1.80 metres.
Integrated laser pointer Simplifies the quick location of problematic areas and the visual targeting in poorly lit surroundings.
Diverse measuring and analysis functions Reliable, quick and precise results due to dynamic eight-point measuring, automatic temperature tracking, differential measurements, line profile analysis, sector analysis, isotherm and alarm function.
Periodic image storage Permits periodic recordings of thermal images with a preselectable recording frequency, e.g. every 30 minutes. With this recording interval you can easily document the thermal long-term behaviour of an object.
Intelligent power management High battery performance, longer non-stop measuring applications.
Correction of the reflected ambient temperature When the surface of the object to be measured has a low degree of emission and the object temperature contrasts rather strongly with the surface temperature, the temperatures measured by the thermal imaging camera are being influenced. Such measurement errors can be compensated for by adapting the reflected ambient temperature.
Professional analysis software No additional costs for expensive software: Full-fledged analysis and documentation program with numerous functions for evaluation, organization and documentation already included in the scope of delivery.
Bluetooth (optional) Wireless connection facility for an optional headset.
Voice recording Comment every image on site with valuable additional information (optionally available headset required).
MicroSD memory card slot Uncomplicated storage management, several thousand images fit onto the supplied microSD card. Basically unlimited memory capacity by simple card replacement.
Standard file format Storage of the entire infrared image information in one fully radiometric JPEG format. No special software required for processing as with proprietary file formats. Advantage: More flexibility for analyses and evaluations, quicker report generation.
Picture-in-picture display function DuoVision Plus Combines the infrared image information with high-contrast details of the visible light spectrum from the real image camera for the real-time indication of an extremely detailed thermal image fusion on the camera display. Advantage: Easier orientation, localization and assessment during the measurement.
Software function DuoVision For a better evaluation and professional documentation, infrared and real image can be superimposed as desired and stored via the software as a new file.
Software function DuoVision Plus For a better evaluation and professional documentation, infrared and real image can be superimposed as desired via the software. Then it can be stored as contour emphasizing thermal image in which the radiometric image information is combined with the high-contrast details of the real image.
IR video function Non-radiometric IR videos can be used to visualize processes such as the heating and cooling behaviour of electronic and mechanical components or other objects over a specified period of time.
Fully radiometric infrared videos in real time
(with optionally available real-time upgrade)		 Fully radiometric real-time videos on your PC, connected to the thermal imaging camera via a fast USB 2.0 interface, enable the detailed examination of thermal processes. All temperature information of each individual image sensor are contained in the video for evaluation.
Integrated 5 megapixel digital camera Quicker and easier object inspection thanks to simultaneous display and recording of fully radiometric infrared and high-resolution real images.
Integrated photo lamp Improved photo results due to optimum illumination of dark target areas during real image recording.
Connection possibility for optional interchangeable lenses In most situations the standard lens is the best solution, but with some applications a different field of view is required. In contrast to cameras with fixed lenses, when examining particularly small or large objects here you can simply connect telephoto or wide-angle lenses as required.
