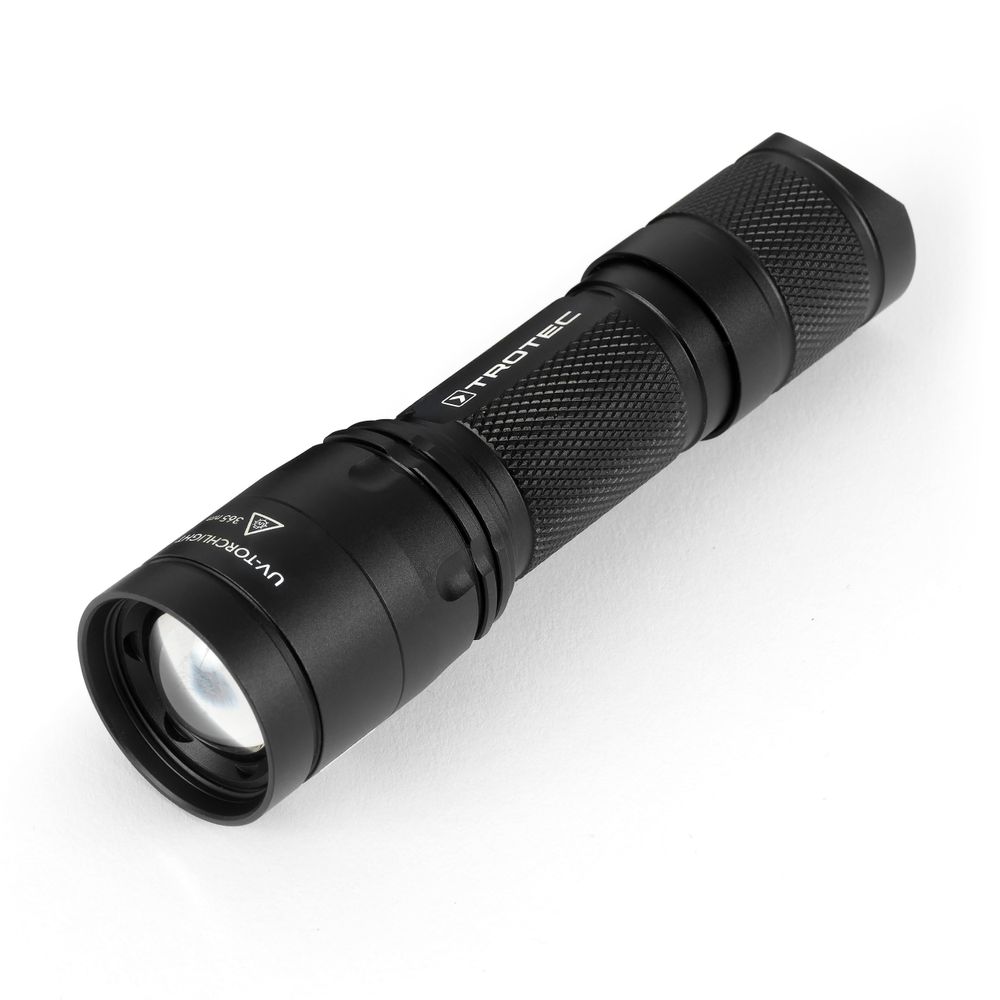

UV-Torchlight 16F

Hand-held UV-A lamp in torch format with infinitely variable focussing from spotlight to floodlight

The UV-Torchlight 16F is a professional, hand-held UV-A lamp in torch format that can be continuously focussed from spotlight to floodlight
The UV-Torchlight 16F is a professional, hand-held UV-A lamp in torch format that can be continuously focussed from spotlight to floodlight

With the UV-Torchlight 16F you have a professional hand-held UV-A lamp for non-destructive tracer light detection for the purpose of material testing, leak detection or quality control as well as safety applications.

This lightweight and robust LED torch provides maximum UV-A performance immediately after switch-on and is especially suited for quick inspections or checks of poorly accessible areas.

Thanks to the impressively high spotlight radiation intensity of the UV-Torchlight 16F, a very high fluorescence stimulation can be achieved – this way, even minor tracers are clearly visible in the daylight.

Unlike conventional UV torches, though, the UV-Torchlight 16F can not only be used in spotlight operation: An integrated focus ring enables the infinitely variable regulation of the UV-A radiation cone from spotlight to floodlight.

This variable focal length setting permits a particularly wide range of applications for the UV-Torchlight 16F. Its high illumination flexibility makes the ultra-compact UV-Torchlight 16F a universally applicable tracer detector for various investigation tasks.

The focal length of the UV-Torchlight 16F can be continuously focussed from spotlight to floodlight

Continuously focusable for variable focal length setting

Whether spotlight with maximum fluorescence excitation or floodlight for rapid examination of larger areas – with just one turn of the focus ring on this ultra-compact hand-held UV-A lamp, you always have the optimum light intensity for every task.

Simply turn the focus ring of the UV-Torchlight 16F to adjust the focal length
The focal length of the UV-Torchlight 16F can be continuously focussed from spotlight to floodlight

Professional, hand-held UV-A lamp in torch format – special equipment features of the UV-Torchlight 16F

The UV-Torchlight 16F comes with a wrist strap in a practical complete set including belt holster, transport box and UV protection glasses.
The UV-Torchlight 16F is supplied in a practical complete set
The UV-Torchlight 16F comes with a wrist strap in a practical complete set including belt holster, transport box and UV protection glasses.
The UV-Torchlight 16F is supplied in a practical complete set
The UV-Torchlight 16F comes with a wrist strap in a practical complete set including belt holster, transport box and UV protection glasses.
The UV-Torchlight 16F is supplied in a practical complete set
The lightweight and robust metal housing made of high-strength aluminium alloy with IP54 protection fits comfortably in the hand thanks to its ribbed handle.
Easy grip, robust metal housing made of high-strength aluminium alloy
Sound workmanship down to the last detail: the rubber cap of the rear push button is studded and positioned in a way that the torch can easily be switched on and off even when wearing gloves.
The UV-Torchlight 16F can be easily switched on and off even when wearing gloves
The holster included in the scope of delivery is equipped with a belt loop so that the UV-Torchlight 16F can be conveniently carried at all times for quick access.
Practical belt holster included in the scope of delivery

All hand-held UV-A lamps in direct comparison:

To find the hand-held UV-A lamp which exactly meets your requirements, please consult the concise overview of all hand-held UV-A lamps from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

Hand-held UV-A lamp UV-Torchlight 16F

UV-Torchlight 16F – a few practical benefits:

  • Ultra-compact hand-held lamp with high spotlight radiation intensity
  • Extremely versatile from spotlight to floodlight owing to infinitely focusable UV-A radiation cone
  • Light and mobile system for an effective examination of large-scale and even poorly accessible locations
  • Robust metal housing made of high-strength aluminium alloy
  • High energy efficiency, therefore less current consumption and longer service life
  • Pleasantly silent operation without cooling fan
  • Immediately ready for use without the need of longer warm-up phases
  • Complete set including transport box and UV protection glasses

Our accessory tip: Tracer dyes for leak detection, tightness testing, flow path testing

Depending on the tracer used, the test objects can be fogged with tracer aerosols, immersed in tracer liquid or dusted with tracer powders. Suitable tracers are, for example, water-soluble Uranin powder or Trotec Luminat, an eleven per cent anionic aqueous pigment dispersion, which can be diluted with water, but does not metabolize. This is particularly advantageous in case of leak detections on green roofs or when locating concealed leaky water-bearing pipes or drains. Due to its small pigment size of only 0.5 µm, Trotec Luminat penetrates even the smallest capillaries and is extremely yielding; depending on the field of application, a dilution at the rate of 0.3 to 3 % is sufficient.

Attention! The marking agents Uranin and Luminat must not be used as food colourant!

The UV-Torchlight 16F from Trotec provides diverse application possibilities:

Leakage at the refrigerant line of a car's air conditioning system under UV light using a contrast medium.
Leakage at the refrigerant line of a car's air conditioning system under UV light using a contrast medium.

Leak detection at motors and aggregates

Using the UV-Torchlight 16F, leaks in motor systems or cooling units can usually be detected as a luminous blotch of colour around the leaky spot in a matter of a few operating minutes by adding a contrast medium (tracer).

Whether for hydraulic system, refrigeration system, lubricant or fuel line – by use of multi-coloured tracers not only the point of leakage can be determined quickly and precisely, but also the cause for leaking.

Detection of a leaky water-carrying pipe in a building by passing in Uranin and performing a subsequent UV inspection.
Detection of a leaky water-carrying pipe in a building by passing in Uranin and performing a subsequent UV inspection.

Leak detection in buildings and supply networks

By using artificial marking agents (tracers) in complex, fluid-bearing lines, their two-dimensional tightness can be checked or leak-related liquid distributions and spills can be detected and analysed with the ultraviolet light of the UV-Torchlight 16F.

Further typical fields of application are tightness tests at water-bearing layers of flat roofs or the inspection of drains and downpipes.

Crack in an aircraft brake component under UV light during a non-destructive magnetic particle inspection.
Crack in an aircraft brake component under UV light during a non-destructive magnetic particle inspection.

Non-destructive material testing in the industry

Using the fluorescence penetrant inspection (FPI) or the magnetic particle inspection (MPI) with fluorescent testing agents, surface defects or cracks on components and machines can be detected quickly and without great effort in ferrous and non-ferrous metals as well as many plastic and ceramic materials thanks to the UV-A radiation of the UV-Torchlight 16F.
