Scope of delivery, accessories and technical data

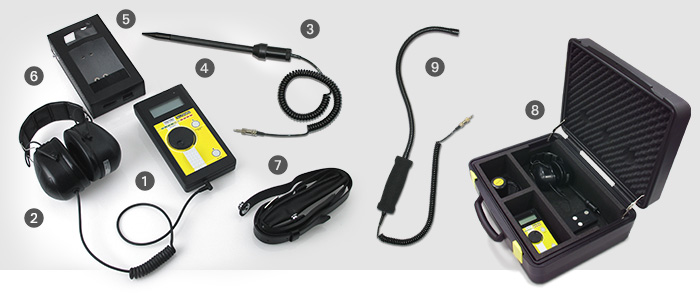

Trotec basic package 1
- SL2000 leak detector (1)
- Soundproof headphones (2)
- Airborne sound probe (3)
- Shotgun for airborne sound probe (4)
- Shotgun tip (5)
- Leather bag (6) with carrying strap (7)
- Carrying case (8)
Trotec basic package 2
- SL2000 leak detector (1)
- Soundproof headphones (2)
- Flexible airborne sound probe (9)
- Leather bag (6) with carrying strap (7)
- Carrying case (8)

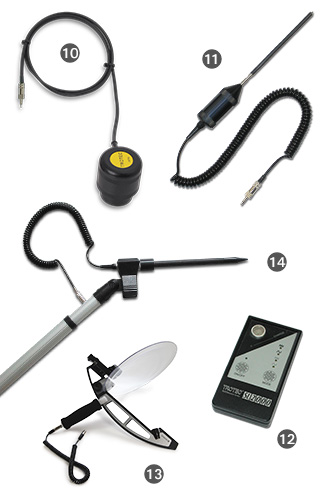

Optionally available accessories
- Ground-borne sound probe (10)
- Structure-borne sound probe (11)
- Ultrasound transmitter (12)
- Parabolic probe (13)
- Telescopic rod (14)
Shop
Technical data
Technical dataEquipment, features and functionsStandard scope of deliveryAscertainable measured values and functions
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | SB0060210 | |
| Ultrasound [digits] | ||
| Measuring range | 0 – 120 | |
| Resolution - Ultrasound [Digits] | 0.1 | |
| Receiving frequency | 40 KHz ± 1 KHz | |
| Display | ||
| Monochrome | ||
| LCD | ||
| Device control | ||
| Thumbwheel | ||
| Push buttons | ||
| Housing design | ||
| Plastics | ||
| Interfaces | ||
| 3.5 mm audio jack (headphones) | ||
| Operating time | ||
| approx. 10 h | ||
| Power supply | ||
| Internal (battery) | ||
| Battery type | 4 x 1.5 V, AA | |
| Ambient conditions | ||
| Operation - min. temperature [°C] | 0 | |
| Operation - max. temperature [°C] | 40 | |
| Storage - min. temperature [°C] | -10 | |
| Storage - max. temperature [°C] | 50 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 195 | |
| Width (packaging excluded) [mm] | 100 | |
| Height (packaging excluded) [mm] | 40 | |
| Weight | ||
| (packaging excluded) [kg] | 0.55 | |
| Equipment, features and functions | ||
|---|---|---|
| Internal sensors | ||
| Ultrasound [digits] | ||
| External sensors | ||
| Ultrasound [digits] | ||
| Functions and features | ||
| Acoustic leak detection (ultrasound) | ||
| Measuring of audible sound and ultrasound with one device | ||
| Standard scope of delivery | ||
|---|---|---|
| Standard scope of delivery | ||
| Measuring device | ||
| Sound-protected headphones | ||
| Transport case | ||
| Operating manual | ||
| Shoulder strap for measuring device | ||
| Battery(-ies) | ||
| Transport bag | ||
| Factory test certificate | ||
| Ascertainable measured values and functions | ||
|---|---|---|
| Internal sensors | ||
| Ultrasound [digits] | ||
| External sensors | ||
| Ultrasound [digits] | ||
| Functions and features | ||
| Acoustic leak detection (ultrasound) | ||
| Measuring of audible sound and ultrasound with one device | ||
