Humidifier B 600

Mobile professional large-capacity humidifier for the highest of demands

Large-capacity humidifier B 600
The professional humidifier B 600 automatically creates an ideal room climate even in large rooms
The professional humidifier B 600 automatically creates an ideal room climate even in large rooms

B 600 – state-of-the-art hygiene technology

Its structured design, the use of high-quality materials and its high performance make the humidifier B 600 a reference in the field of mobile humidification. The flexible choice of different model variants makes it perfectly suited for many application profiles – common to all variants is their simple handling and immediate readiness for use without any major installation effort.

As a consistent further development of the B 500, which is appreciated by customers all over the world, the humidifier B 600 easily meets professional requirements and supports you in maintaining constant climate conditions. Professional humidification with Trotec's B 600 guarantees a healthy and value-preserving room climate! All in all, the B 600 offers you an unbeatable range of benefits:

Convenient application

  • Low noise emission thanks to the 8-speed automatic fan
  • Simple maintenance and service thanks to modular design
  • Convenient self-diagnosis system
  • Clear operating unit with touchscreen and indication of humidity and temperature
  • Direct water connection (optional)
  • Operation with standard tap water possible
  • Programmable fan operation with timer
  • Economical operation
  • Can also be monitored and controlled via app thanks to WLAN module integrated as standard

Excellent quality

  • Made of high-quality plastics with UV protection, easy to clean and robust against descalers and detergents
  • Stainless steel shafts and stainless steel ball bearings
  • Safety glass cover with damper lowering

Reliable operation

  • Reduction of germ formation through UV disinfection and lime conversion (optional)
  • Self-diagnosis system with warning indication in the event of a failure
  • No limescale on furniture and fixtures
  • High evaporation performance
  • PIN protection against unauthorised access

Unlimited mobility

  • Ready for use without installation
  • Swivel castors for quick change of location
  • Safe transport thanks to spill protection and overlapping design
  • Large 50-litre water tank

Healthy room climate all year round

  • Can be used as an air cleaner without additional humidification (summer mode)
  • Prefiltration of the air with coarse particulate air filter of class G2 and fine particulate air filter of class F7

Professional humidification technology – easy handling

Powerful EC radial fan, both efficient and comfortable

The new, more powerful EC radial fan of the B 600 is even more efficient while offering increased comfort compared to the fan of the predecessor model B 500. In addition, the fan of the B 600 is protected according to IP54. In automatic mode, its speed adjusts automatically depending on the performance requirements, thus ensuring the optimum performance of the humidifier. In manual mode, you have 8 speeds to choose from, which makes it even easier to find the speed that suits you.

Due to the use of high-quality plastics and stainless steel shafts as well as stainless steel ball bearings, the fan permanently withstands the high requirements and once again emphasizes the professional character of the humidifier B 600.

All eyes on the modern touchscreen

The modern touchscreen provides information on the operating parameters such as current relative humidity, room temperature, fan stage, maintenance information or warning messages. Via clearly structured submenus, e.g. for the timer, maintenance intervals, pin assignment or WLAN settings, you can easily programme the B 600 according to your own ideas and adapt it to your circumstances.

Alternatively, the B 600 can also be monitored and controlled remotely with your smartphone using an app and the WLAN module integrated as standard. Via the app you can switch the humidifier on and off, set the humidity and fan levels, receive error messages and much more. The app is available free of charge in the App Store and Google Play Store.

Air purification mode even without humidification function

Before the air is fed into the device, it is precleaned by filtering out dust and particles in the suction area using a coarse and fine particulate air filter combination. In summer mode, the humidification function can then be deactivated via the touchscreen, so that the B 600 can be used for air purification only.

For air purification mode, we recommend using the activated carbon purification filter available as an accessory. This filter is used in place of the evaporation filter and allows for additional filtration of odours and gaseous substances, which can further improve the room air quality.

Powerful EC radial fan, both efficient and comfortable
Simple maintenance and service thanks to modular design
Modern touchscreen – easy handling


The B 600 is available in three model variants – the optimum humidifier for every demand

B 600 standard version

B 600 standard version

Advanced hygiene technology for a healthy room climate

Article number 1.160.000.600

As standard, the device is operated with a 50-litre water tank that is filled manually. Connection to a water supply is not mandatory. You can either use standard tap water or treated water; this does not affect the device's functioning.

Since you can select between humidification mode and air purification mode without humidification function, the humidifier B 600 can operate in either winter or summer mode as desired, even in the standard version. The resulting flexibility and mobility of the humidifier is a big plus.

B 600 including automatic water supply

B 600 including automatic water supply

Yet more convenient connection option

Article number 1.160.000.601

This model variant offers you all the advantages of the standard version, but in addition you can also connect the B 600 to a water line for automatic refilling.

Thanks to the automatic water supply, there is no need to refill by hand and operation becomes even more convenient. Water is supplied via an electronically controlled solenoid valve that opens when the minimum water level is reached and stops the water supply at a preset maximum level.

The installation can be done without much effort, as you can simply connect the humidifier via a quick coupling system.

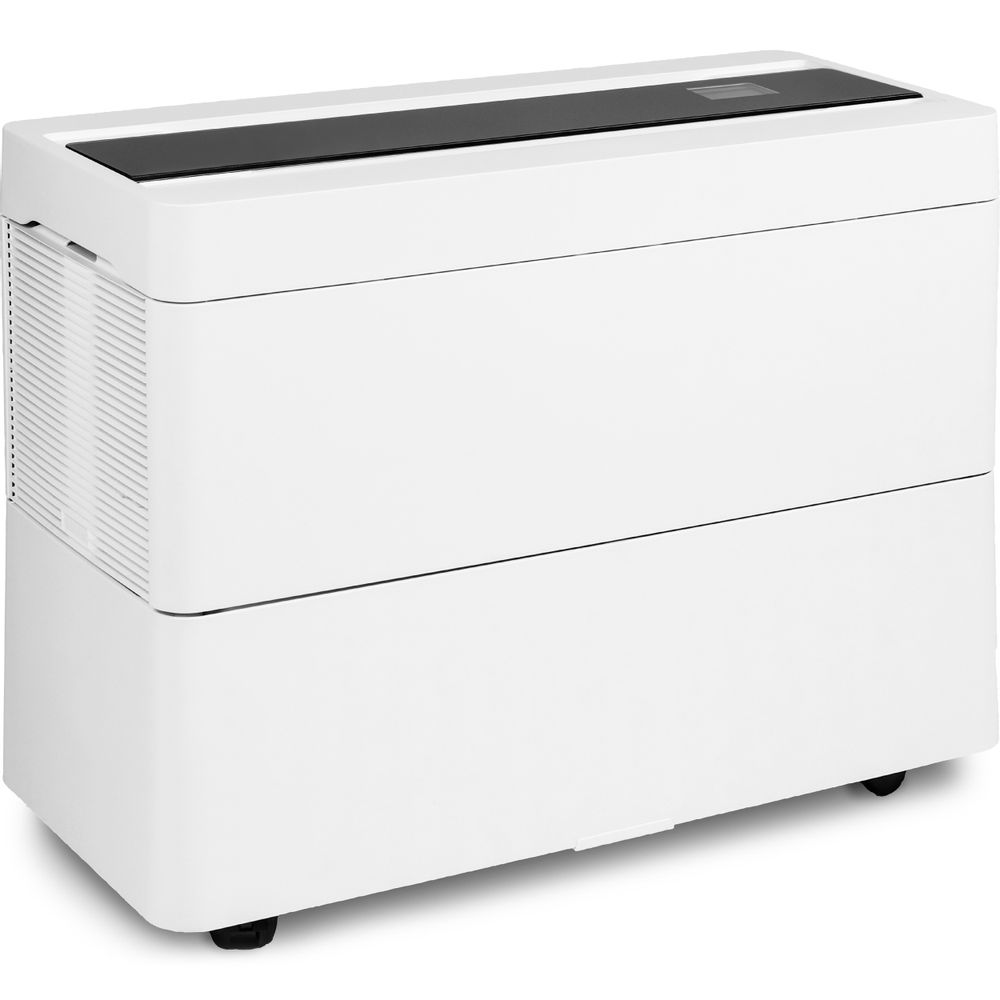

B 600 including UV disinfection and lime conversion

B 600 including UV disinfection and lime conversion

Effective reduction of germ formation and limescale deposits

Article number 1.160.000.602

The UV technology generates short-wave light destroying and thus killing the cell structures of most microorganisms and germs. For this, the water inside the humidifier B 600 is permanently pumped through a stainless steel body in which a low-pressure UV lamp, protected by a quartz glass, has been installed. A thin water-bearing layer is thus produced between the quartz glass and stainless steel body, which is irradiated and sterilised very intensively due to the short distance to the lamp. The purified water is then returned to the water circuit and led directly to the evaporation filter via the lime conversion cartridge. The latter creates a magnetic field changing the molecular structure of the lime in a way that it is less likely to deposit on the surfaces inside the device. This way, the evaporation filter is permanently supplied with clean, decalcified and germ-reduced water.


B 600 – special equipment features

The professional humidifier B 600 offers you unlimited mobility: The compact construction requires little floor space and can be easily moved from one site to another thanks to the swivel castors. Once set up and plugged in, the B 600 is immediately ready for use without installation.
The humidifier B 600 works on the natural principle of evaporation. A pump continuously transports water from the large tank of the B 600 into the inlet channel of the evaporation filter. Due to the 3.5 m² filter surface, the B 600 impresses with a high evaporation performance even in large rooms.
Large evaporation filter for high performance
The B 600 can be conveniently filled from the top of the device. The filling opening is located underneath the stylish, matt black glass cover on the top of the device, which can be easily folded upwards.
Convenient handling characteristics
The entire operating configuration of the B 600 can be conveniently carried out via the large touchscreen. During operation, it displays all parameters such as current relative humidity, room temperature, fan speed as well as maintenance information or warning messages.
Easy to control via touchscreen


A few practical benefits:

  • Professional comfort humidification in automatic mode for rooms sized up to 1,000 m³
  • Reduction of germ formation through UV disinfection and lime conversion (optional)
    PIN providing additional protection against unauthorised access
  • Clear operating unit with touchscreen and indication of humidity and temperature
  • Simple maintenance and service thanks to modular design
  • Low noise emission thanks to the 8-speed automatic fan
  • Prefiltration of the air with coarse particulate air filter of class G2 and fine particulate air filter of class F7
  • Self-diagnosis system with warning indication in the event of a failure
  • Large 50-litre water tank
  • Direct water connection (optional)
  • Operation with standard tap water or treated water possible

Buy

Evaporation humidifier B 600 show in Trotec online shop
 B 600  Evaporative Humidifier incl. Automatic Water Supply show in Trotec online shop
 B 600 Evaporative Humidifier incl. UV Sterilization show in Trotec online shop

Technical data

B 600 standard version

Technical data
General information
  Article number 1.160.000.600
Air flow rate
  Max. air volume flow [m³/h] 900
Electrical values
  Mains connection 220 - 240 V, 50/60 Hz
  Power input | Humidification [kW] 0.13
Electric connection
  Connection plug CEE 7/7
Evaporation capacity
  Power Max. [l/24h] 62
Fan stages
  Radial
  Fan stages 8
Recommended room size
  1,000
  420
RH control
  Humidity sensor, internal
Water tank
  Contents [l] 50
Air filter
  Evaporation filter
  Fine dust filter F7
  Coarse dust filter G2
Sterilization
  UV lamp
Control
  Programmable control unit
  Touch display with lock function
Sound values
  Level min. [dB(A)] 32
  Level Max. [dB(A)] 58
Functions and features
  Hygrostat-controlled automatic operation
  Self-diagnosis system
  Touchscreen control panel
  Air humidification function
  Air purification function
  Stainless steel shafts
  Stainless steel ball bearings
  Safety glass cover with damper lowering
  protection type 54
  Remote control via app possible
  WLAN module
  Automatic water supply
  Maximum water pressure when connected to water pipe 10 bar
Dimensions
  Length (packaging excluded) [mm] 390
  Width (packaging excluded) [mm] 850
  Height (packaging excluded) [mm] 630
Weight
  (packaging excluded) [kg] 28
Equipment, features and functions
Mobility
  Wheels
Housing colour
  Housing colours White
Housing design
  Plastics
Timer function
  Switch-off time can be preselected
  Switch-on time preselectable
  Automatic switch-off

 standard equipment

 optionally available

 not available

B 600 including automatic water supply

Technical data
General information
  Article number 1.160.000.601
Air flow rate
  Max. air volume flow [m³/h] 900
Electrical values
  Mains connection 220 - 240 V, 50/60 Hz
  Power input | Humidification [kW] 0.13
Electric connection
  Connection plug CEE 7/7
Evaporation capacity
  Power Max. [l/24h] 62
Fan stages
  Radial
  Fan stages 8
Recommended room size
  1,000
  420
RH control
  Humidity sensor, internal
Water tank
  Contents [l] 50
Air filter
  Evaporation filter
  Fine dust filter F7
  Coarse dust filter G2
Control
  Programmable control unit
  Touch display with lock function
Sound values
  Level min. [dB(A)] 32
  Level Max. [dB(A)] 58
Functions and features
  Automatic water supply
  Hygrostat-controlled automatic operation
  Self-diagnosis system
  Touchscreen control panel
  Air humidification function
  Air purification function
  Stainless steel shafts
  Stainless steel ball bearings
  Safety glass cover with damper lowering
  protection type 54
  Remote control via app possible
  WLAN module
  Maximum water pressure when connected to water pipe 10 bar
Dimensions
  Length (packaging excluded) [mm] 390
  Width (packaging excluded) [mm] 850
  Height (packaging excluded) [mm] 630
Weight
  (packaging excluded) [kg] 28
Equipment, features and functions
Mobility
  Wheels
Housing colour
  Housing colours White
Housing design
  Plastics
Timer function
  Switch-off time can be preselected
  Switch-on time preselectable
  Automatic switch-off

 standard equipment

 optionally available

 not available

B 600 including UV disinfection and lime conversion

Technical data
General information
  Article number 1.160.000.602
Air flow rate
  Max. air volume flow [m³/h] 900
Electrical values
  Mains connection 220 - 240 V, 50/60 Hz
  Power input | Humidification [kW] 0.13
Electric connection
  Connection plug CEE 7/7
Evaporation capacity
  Power Max. [l/24h] 62
Fan stages
  Radial
  Fan stages 8
Recommended room size
  1,000
  420
RH control
  Humidity sensor, internal
Water tank
  Contents [l] 50
Air filter
  Evaporation filter
  Fine dust filter F7
  Coarse dust filter G2
Sterilization
  UV lamp
Control
  Programmable control unit
  Touch display with lock function
Sound values
  Level min. [dB(A)] 32
  Level Max. [dB(A)] 58
Functions and features
  Hygrostat-controlled automatic operation
  Self-diagnosis system
  Touchscreen control panel
  Air humidification function
  Air purification function
  Stainless steel shafts
  Stainless steel ball bearings
  Safety glass cover with damper lowering
  protection type 54
  Remote control via app possible
  WLAN module
  Automatic water supply
  Maximum water pressure when connected to water pipe 10 bar
Dimensions
  Length (packaging excluded) [mm] 390
  Width (packaging excluded) [mm] 850
  Height (packaging excluded) [mm] 630
Weight
  (packaging excluded) [kg] 28
Equipment, features and functions
Mobility
  Wheels
Housing colour
  Housing colours White
Housing design
  Plastics
Timer function
  Switch-off time can be preselected
  Switch-on time preselectable
  Automatic switch-off

 standard equipment

 optionally available

 not available
