Show all x TFC 1 E / TFC 2 E x TFC 13 E / TFC 14 E x TFC 14 E x TFC 16 E x TFC 17 E x TFC 18 E x TFC 19 E x TFC 20 E x TFC 21 E x TFC 25 E x TFC 220 E
TFC 1 E / TFC 2 E
TFC 13 E / TFC 14 E
TFC 14 E
TFC 16 E
TFC 17 E
TFC 18 E
TFC 19 E

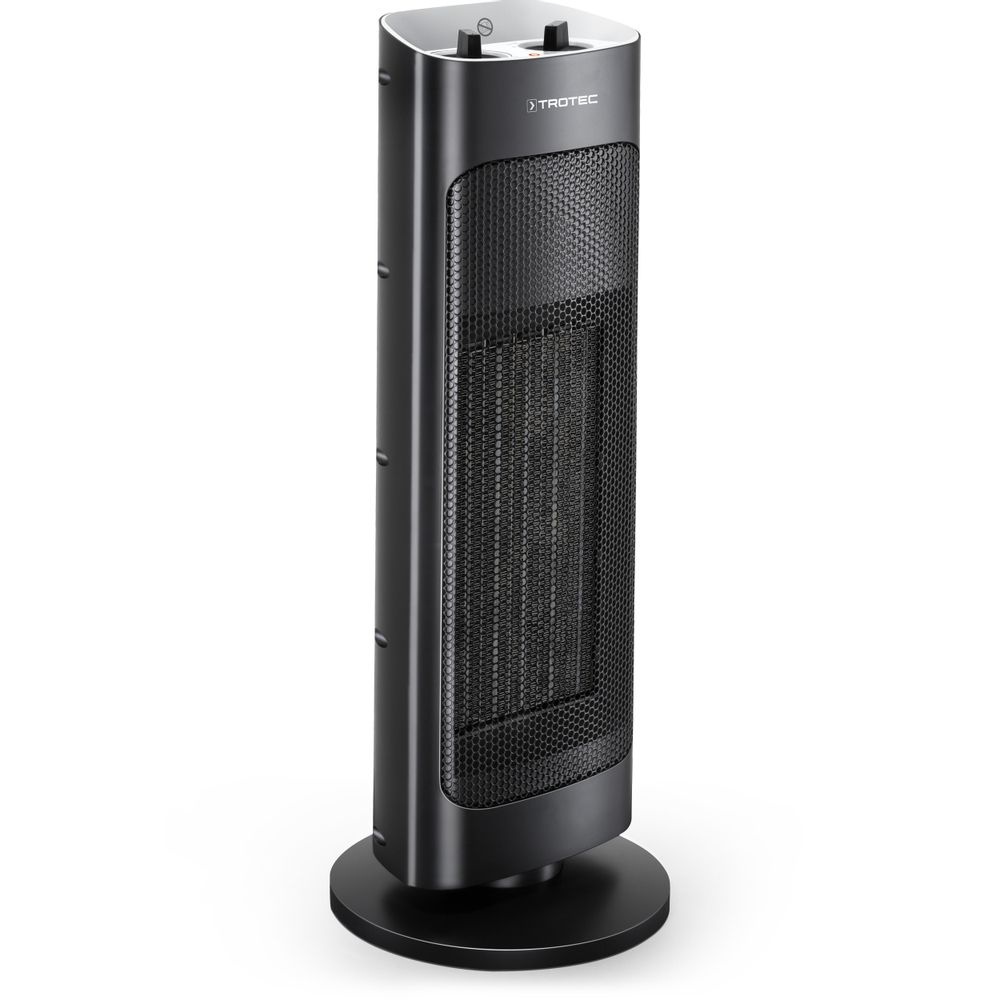

TFC 20 E
TFC 21 E
TFC 25 E
TFC 220 E

Technical data Equipment, features and...

You save: 32 %

30.95 £ 20.95 £ incl. VAT Show net price (VAT not included)

You save: 40 %

39.95 £ 23.95 £ incl. VAT Show net price (VAT not included)

You save: 32 %

39.95 £ 26.95 £ incl. VAT Show net price (VAT not included)

You save: 45 %

39.95 £ 21.95 £ incl. VAT Show net price (VAT not included)

You save: 38 %

43.95 £ 26.95 £ incl. VAT Show net price (VAT not included)

You save: 48 %

59.95 £ 30.95 £ incl. VAT Show net price (VAT not included)

You save: 36 %

54.95 £ 34.95 £ incl. VAT Show net price (VAT not included)

You save: 26 %

74.95 £ 54.95 £ incl. VAT Show net price (VAT not included)

You save: 20 %

99.95 £ 79.95 £ incl. VAT Show net price (VAT not included)

You save: 30.00 £

129.95 £ 99.95 £ incl. VAT Show net price (VAT not included)

You save: 30.00 £

109.95 £ 79.95 £ incl. VAT Show net price (VAT not included)

Technical data
General information
Article number 1.410.000.640 1.410.000.656 1.410.000.655 1.410.000.658 1.410.000.659 1.410.000.660 1.410.000.661 1.410.000.670 1.410.000.671 1.410.000.678 1.410.000.690
Heating capacity
Level 1 [kW] 0.5 0.7 0.7 1.2 1.2 1.1 1.2 1 1.3 1.8 2.2
Level 2 [kW] 1.4 1.4 2 2 1.8 2 2 2 2.5
Suitable for rooms sized up to [m²] 10 20 20 24 24 22 24 24 24 30 26
Suitable for rooms sized up to [m³] 25 50 50 60 60 55 60 60 60 75 65
Operating range
Min. temperature [°C] -20 -10 -10 -5 -5 -10 -5 -10 -20 -20 -20
Max. temperature [°C] 28 25 25 25 25 25 25 25 35 35 50
Fans
axial
Radial
Number of fan stages 2 1 1 1 2 1 2 2 1 1 2
Electrical values
Mains connection 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 230 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50/60 Hz 220 - 240 V, 50/60 Hz 230 V, 50/60 Hz
Nominal current consumption [A] 2.17 6.1 6.1 8.7 8.7 7.8 8.7 8.6 8.7 10.9 9.6
Recommended fusing [A] 10 10 10 10 10 10 10 10 10 16 16
Power input [kW] 0.5 1.4 1.4 2 2 1.8 2 2 2 2.5 2.2
Electric connection
Connection plug CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/17 CEE 7/7
Cable length [m] 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.6 1.6 1.3
Functions and features
Operating control lamp
Frost monitor function
Night mode
Comfort mode
Current room temperature indication
LED display
Cold air operation
Air filter
Memory function
Automatic switch-off after 12 h of operation
Thermostat-controlled automatic operation
Display switch-off function
Automatic switch-off upon reaching the set value
Dimmable display
Energy saving mode
On / off switch
Steplessly adjustable thermostat
Auto restart function
Tilt protection switch
Timer function
LED display
Fan rundown function
Multi-stage thermostat
Internal oscillation (°) 70° 70° 80° 80° 80°
Sound values
Distance 1 m [dB(A)] 51 48 48 60 57 48 54 48 50 50
Safety feature
Overheating protection [°C] 70 80 80 65 65 65 85 65 55 50 115
IP type of protection IP20 IP20 IP20 IP20
Protection class II II II II II II II II II I
Dimensions
Length (packaging excluded) [mm] 110 120 120 175 185 148 186 200 178 260 200
Width (packaging excluded) [mm] 130 195 195 135 155 220 186 200 230 260 520
Height (packaging excluded) [mm] 202 255 255 228 262 315 440 520 660 800 400
Weight
(packaging excluded) [kg] 0.4 1 1 1.5 2 2 2 2.5 3 3.5 6
Equipment, features and functions
Operation
Thermostat
Multi-stage thermostat
Mobility
portable
Carry/transport handle(s)
Feet
Recessed handles
Housing design
Plastics
Sheet steel – coated

 standard equipment

 optionally available

 not available
