Show all x TTK 105 S x TTK 140 S x TTK 170 S x TTK 350 S x TTK 650 S
TTK 105 S

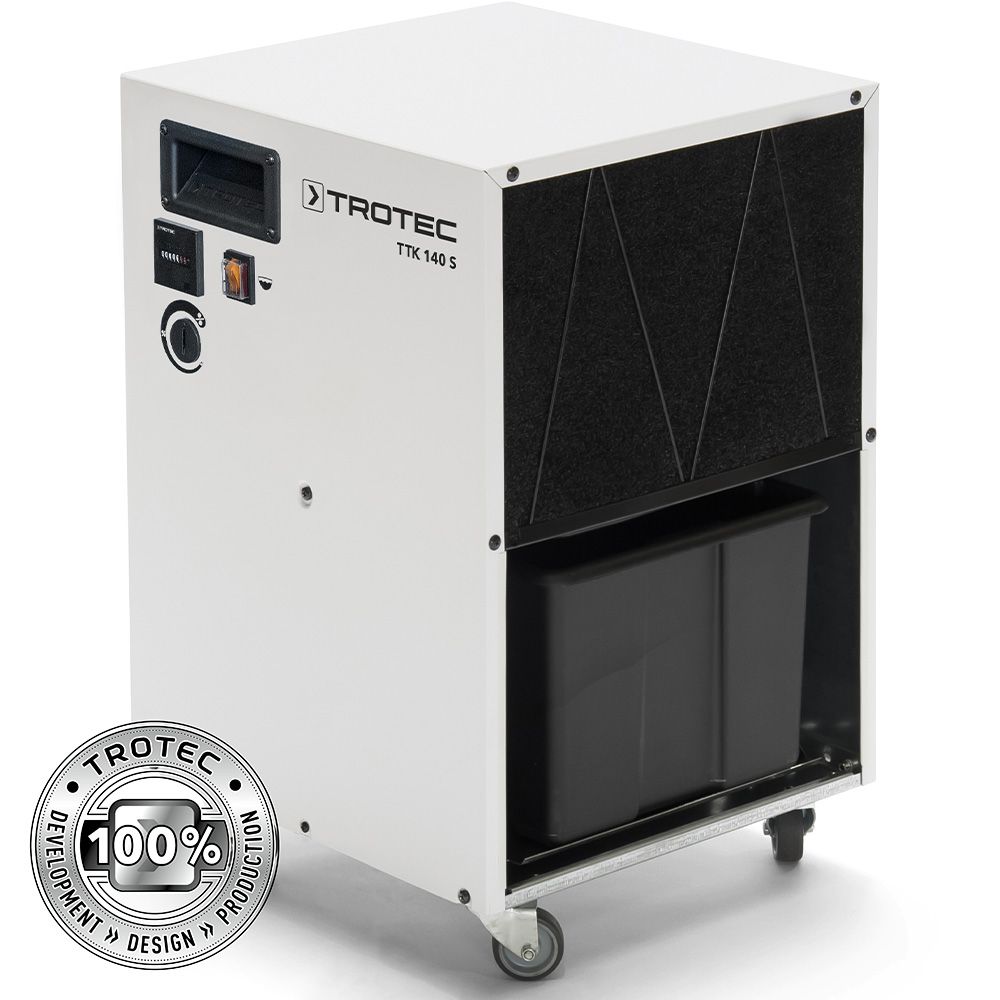

TTK 140 S

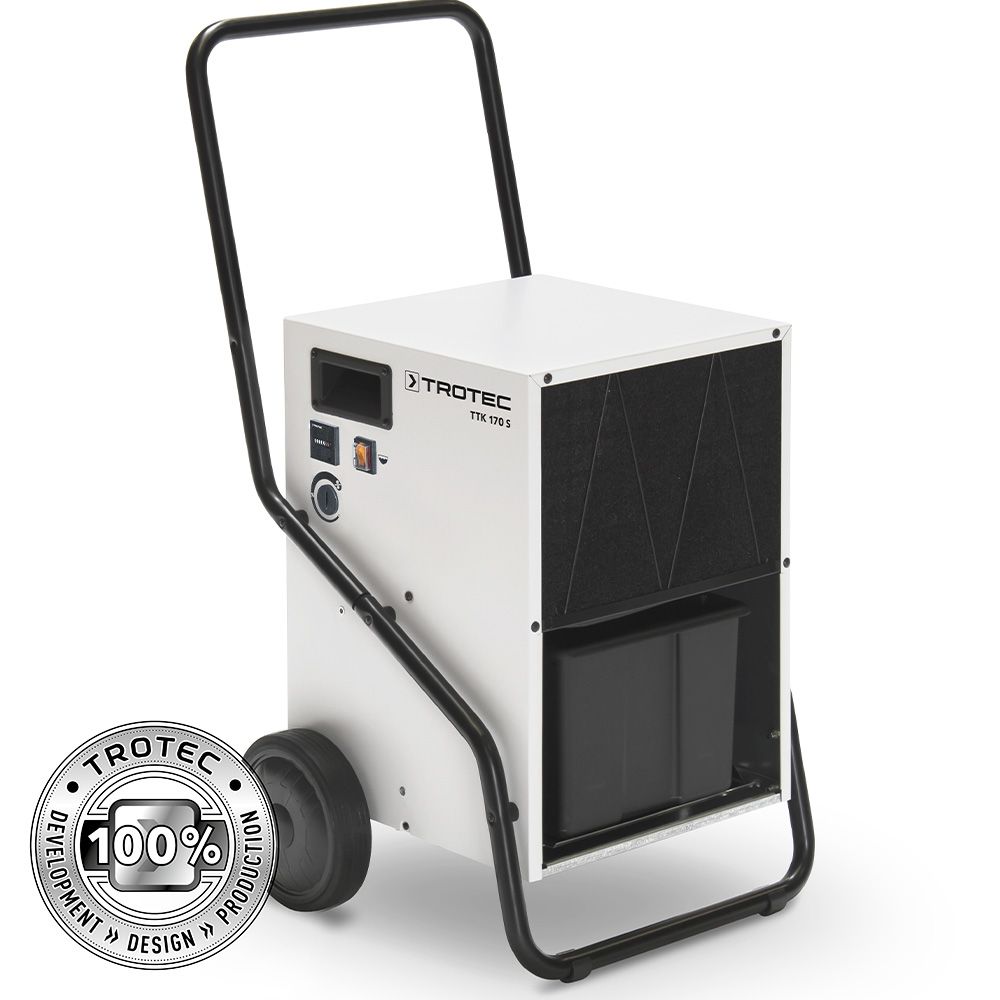

TTK 170 S
TTK 350 S
TTK 650 S

Technical data Equipment, features and...

Price on request

You save: 200.00 £

749.95 £ 549.95 £ incl. VAT Show net price (VAT not included)

Price on request

You save: 150.00 £

1,049.95 £ 899.95 £ incl. VAT Show net price (VAT not included)

You save: 350.00 £

1,699.95 £ 1,349.95 £ incl. VAT Show net price (VAT not included)

Technical data
General information
Article number 1.120.000.109 1.120.000.141 1.120.000.155 1.120.000.160 1.120.000.171
Dehumidification performance
At 30 °C / 80 % RH [l/24h] 28.4 35 40 55 91
Max. [l/24h] 30 40 50 70 150
Air flow rate
Level Max. [m³/h] 173 580 580 1,000 1,000
Recommended room size construction drying
m³ 112.5
m² 45
Recommended room size dry keeping
m³ 230 350 450 450 1,470
m² 90 140 180 180 590
Ambient conditions
Min. temperature range [°C] 5 5 5 5 5
Max. temperature range [°C] 32 32 32 32 32
Min. humidity range [%RH] 30 50 50 50 50
Max. humidity range [%RH] 90 90 90 90 90
Electrical values
Mains connection 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz
Nominal current consumption [A] 2.1 2.7 2.8 6.1 9.5
Power input [kW] 0.5 0.6 0.6 1.4 2.1
Recommended fusing [A] 10 10 10 10 16
Electric connection
Connection plug CEE 7/7 CEE 7/7 CEE 7/7 CEE 7/7 CEE 7/7
Cable length [m] 1.5 3 3 3 3
Compressor
Rotary piston compressor
Reciprocating piston compressor
refrigerant R290 R290 R290 R-454C R-454C
Amount of refrigerant [g] 125 150 150 650 1,050
GWP factor 3 3 3 146 146
CO2 equivalent 0.00038 0.00045 0.00045 0.0949 0.15
Pressure suction side [MPa] 1.2 0.6 0.6 0.6 0.6
Pressure outlet side [MPa] 2.4 1.9 2.1 2.2 2.8
Max. permissible pressure [Mpa] 3 3 3 3
Water tank
Contents in [Litres] 5.2 6 6 6
Sound values
Distance 1 m [dB(A)] 50 52 52 54 56
Functions and features
Laundry drying function
LED display
Room temperature display
Display of the relative humidity level
Automatic fault diagnosis system
Memory function
Fan rundown function
Operating control lamp
Auto restart function
Connection for external condensate drain
Room temperature sensor
Selectable ionisation
Internal drying function
Child lock
Night mode
Dimensions
Length (packaging excluded) [mm] 250 400 540 530 616
Width (packaging excluded) [mm] 342 400 490 500 511
Height (packaging excluded) [mm] 517 605 963 965 1,022
Weight
(packaging excluded) [kg] 14.5 29 32 39 52
Equipment, features and functions
Automatic defrost system
Air circulation / electronic
Hot gas
Electronic
Automatic dehumidification
Non-stop dehumidification
Electronic hygrostat
Hygrostat-controlled
Analogue hygrostat
Program-controlled
Fan
Radial
axial
stages 2 1 1 1 1
Condensate tank monitoring
Container available
Overflow protection with automatic switch-off
Filling level warning light to indicate a full water tank
Room air filter
Readily accessible
Cleanable
Ionizer selectable
Operating hours counter
Power meter
Operating hours counter
Mobility
Carry/transport handle(s)
Plastic wheels
Stand bar
Carriage design
Rubber-tyred metal wheels
Non-marking full-rubber wheels
Swivel casters with parking brakes
Adjustable bar handle
Condensate drain
Hose connection possible
Hose included in the scope of delivery
Condensate pump
Recommended hose size [mm] 12.7 19 19 19 15.875
Control panel
Digital display
LC display
Control knobs
On / off switch
Protective bar
Comfort button
Shelf life
stackable
Housing design
Aluminium
Plastics
Stainless steel
Steel coated
Metal plastic composite housing

 standard equipment

 optionally available

 not available
