Technical data comparison of work lights

Show all x PWLS 10‑20V x PWLS 10 (cordless work light without battery and charger) x PWLS 15-20V x PWLS 01-3 x PWLS 05‑10 x PWLS 06-10 x PWLS 10‑30 x PWLS 10‑70 x PWLS 10-150
PWLS 10-20V
PWLS 10 (cordless work light without battery and charger)
PWLS 15-20V
PWLS 01-3

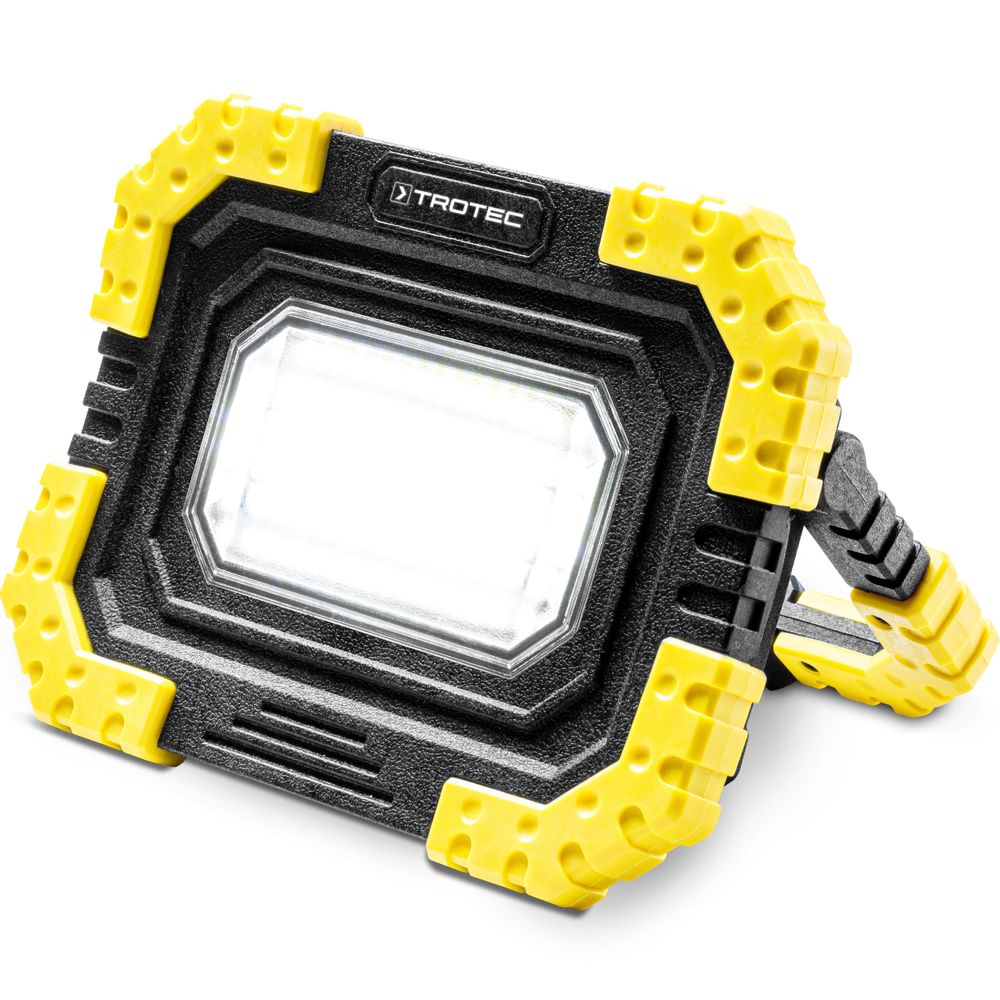

PWLS 05-10
PWLS 06-10
PWLS 10-30
PWLS 10-70
PWLS 10-150

Technical data Standard scope of delivery

You save: 51 %

59.95 £ 28.95 £ incl. VAT Show net price (VAT not included)

You save: 80 %

54.95 £ 10.95 £ incl. VAT Show net price (VAT not included)

Price on request

You save: 40 %

24.95 £ 14.95 £ incl. VAT Show net price (VAT not included)

You save: 40 %

24.95 £ 14.95 £ incl. VAT Show net price (VAT not included)

You save: 27 %

35.95 £ 25.95 £ incl. VAT Show net price (VAT not included)

You save: 42 %

41.95 £ 23.95 £ incl. VAT Show net price (VAT not included)

You save: 51 %

59.95 £ 28.95 £ incl. VAT Show net price (VAT not included)

Price on request
Technical data
General information
Article number 4.455.000.110 4.455.000.010 4.455.000.115 4.455.000.001 4.455.000.005 4.455.000.006 4.455.000.210 4.455.000.250 4.455.000.270
Technical data
Power input Stage 2 [W] 150
Power input Stage 1 [W] 30 70 75
Leuchtdauer bei niedriger Lichtstärke
Colour temperature (K) 6,200 6,200 6,500 6,000
Colour temperature (K) [K] 6,000 5,000 5,000 5,000
Leuchtweite [m]
Energy efficiency class I I
Luminous flux Stage 1 [lm] 2,700 6,300 6,750
Luminous flux Stage 2 [lm] 13,500
Illuminance Stage 1 [lux]
Illuminance Stage 2 [lux]
Radiation angle [°] 120 120 120
Spotlight LED
Power input Spotlight LED [W] 3 3 1
Luminous flux Spotlight LED [lm] 250 250 70
Illuminance Spotlight LED [lux] 110 110
Burn time Spotlight LED 6 h 6 h 8-9 h
Colour temperature (K) Spotlight LED 12,000
Surface LED
Power input Surface LED [W] 3 3 20 3 10 10
Power input Flächen-LED [W]
Luminous flux Surface LED [lm] 300 300 2,000 220 650 800
Luminous flux Flächen-LED [lm]
Illuminance Surface LED [lux] 11 11 197
Burn time Surface LED 8 h 8 h Stufe 1: 12 h
Stufe 2: 7,5h
Stufe 3: 3 h 		6-7 h High brightness level: 3-4 h
Low brightness level: 9-10h 		High brightness level: 4-5 h
Low brightness level: 8-9 h
Burn time Flächen-LED
Colour temperature (K) Surface LED 6,000 6,000 6,000
Colour temperature (K) Flächen-LED
Electrical values
Mains connection 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz 220 - 240 V, 50 Hz
Cable length [m] 1.4 1.4 1.4
Connection plug CEE 7/4 CEE 7/4 CEE 7/4
Safety feature
Type of protection IP20 IPX4 IP44 IP44 IP65 IP65 IP65
Protection class III III I I I
Overheating protection
Overcharging protection
Ambient conditions
Operation - min. temperature [°C] -25 -20 -20 -20 -25 -25 -25
Operation - max. temperature [°C] 25 55 55 55 50 50 50
Storage - min. temperature [°C] -25 -30 -30 -30 -20 -20 -20
Operation – min. relative humidity [%r.F.] 10 10 10
Storage - max. temperature [°C] 25 75 75 75 50 50 50
Operation - max. relative humidity [%r.F.] 90 90 90
Housing design
Aluminium
Functions and features
ON/OFF switch
Number of LED lamp beads 48 120 240
Lamp head, swivelling 180° in 7 positions 180° in 7 positions 90°
Lamp head, rotatable 270° 270° 270°
Profiled heatsinks
Lichtkörper verstellbar
Softgrip
LED light, swivelling 360° 360° 360°
Energy-saving
Flexible suspension hook
Wrist strap attachment
Environmentally friendly
Belt clip
Carrying handles
Flashing warning light
Mounting bracket
Integrated magnetic holder
Brightness levels 1 3 1 3 3 1 1 2
Foot
Stroboscope
Handle, adjustable 8 positions, 0-90° Not available 6 positions, 180° 6 positions, 180° 75° 75° 360°
Powerbank function
Battery level indication Available Available Not available Not available Available
Changeable battery
USB connection 5V, USB Typ-C
Electrical values battery
Battery nominal voltage [V] 20 20 3.7
Battery capacity [Ah] 2 2 4.4
Capacity indication 3-stage 3-stage
Battery type Li-ion Li-ion Li-ion
Charger
Mains connection 230 - 240 V, 50 Hz 230 - 240 V, 50 Hz
Output voltage [V] 21.5 21.5
Power input [W] 65 65
Nominal current consumption [mA] 2,400 2,400
Connection plug CEE 7/16 CEE 7/16
Cable length [m] 1.5 1.5
Protection class II II
Dimensions
Length (packaging excluded) [mm] 85 85 80 60 40 40 55 55 55
Width (packaging excluded) [mm] 70 70 253 65 160 160 285 295 375
Height (packaging excluded) [mm] 175 175 221 250 125 125 290 310 375
Weight
(packaging excluded) [kg] 0.38 0.38 0.67 0.23 0.37 0.434 1.5 1.8 2.5
Standard scope of delivery
Accessories scope of delivery
Number of batteries 1 1
Belt clip
Quick charger
Wrist strap attachment
USB charging cable
Transport case

 standard equipment

 optionally available

 not available
