Show all x PGGS 10-3.7V x PGGS 10‑230V
PGGS 10-3.7V

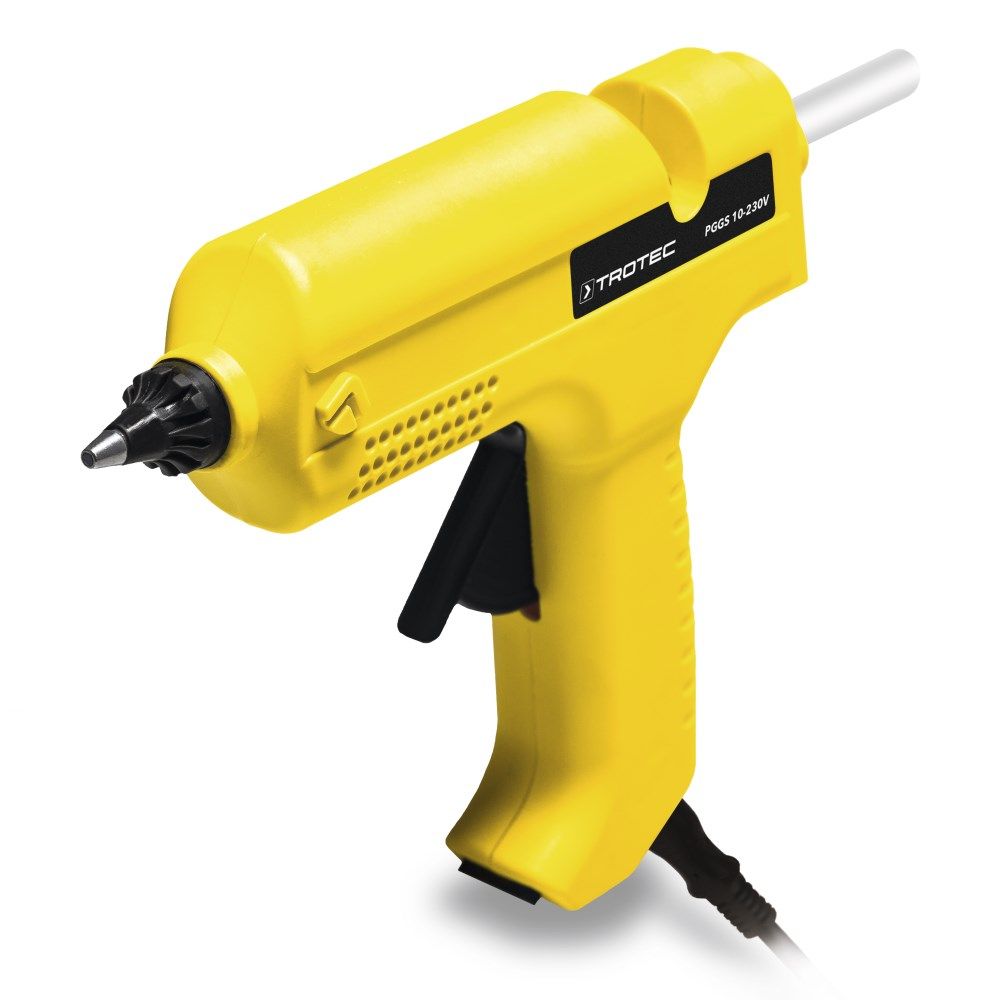

PGGS 10-230V

Technical data Standard scope of delivery Equipment, features and...

You save: 40 %

22.66 £ 13.57 £ incl. VAT
Show net price (VAT not included)

You save: 35 %

18.11 £ 11.76 £ incl. VAT
Show net price (VAT not included)

Technical data
General information
Article number 4.445.000.001 4.445.000.101
Technical data
Power input [W] 25
Power input during start-up [W] 500
Nominal battery voltage 3.7 V (direct current)
Operating hour capacity 30 min
Heating-up time [min] 1 min 5 min
Melting temperature [°C] 170 200
Glue discharge [g/min] 1.5 15
Electrical values
Mains connection 220 - 240 V/50 Hz
Cable length [m] 2
Surrounding conditions
Min. ambient temperature for working °C [°C] 5 5
Max. ambient temperature for working °C [°C] 50 50
Min. ambient temperature for loading °C [°C] 10
Max. ambient temperature for loading °C [°C] 40
Safety feature
Protection class II II
Battery – level indication
Charging time [h] 3
Battery type Li-ion
Battery capacity [Ah] 1.5
Rated voltage [V] 3.7
Dimensions
Length (packaging excluded) [mm] 134 183
Width (packaging excluded) [mm] 24 33
Height (packaging excluded) [mm] 105 175
Weight
(packaging excluded) [kg] 0.171 0.267
Standard scope of delivery
Accessories scope of delivery
Device holder with drip tray
Glue sticks 10 pieces, Diameter 7 mm, length 140 mm 6 pieces, Diameter 11 mm, lenght 150 mm
Exchangeable nozzles Fine nozzle, Slot nozzle, Universal nozzle
Transport case
Equipment, features and functions
Functions and features
ON/OFF switch
Operating control lamp
Feed trigger
Battery level indication Available
Status display
Dripping protection
Automatic switch-off Available, After 10 min Not available
Wire stand
Drip tray
Integrated heat storage system
Nozzle with heat protection cover
Device holder / charging station

 standard equipment

 optionally available

 not available
