Technical data by comparison

Show all x BX09 EU x BX09 FR x BX09 CH x BX09 UK x BX50 MID energy consumption measuring device
BX09 EU
BX09 FR
BX09 CH
BX09 UK

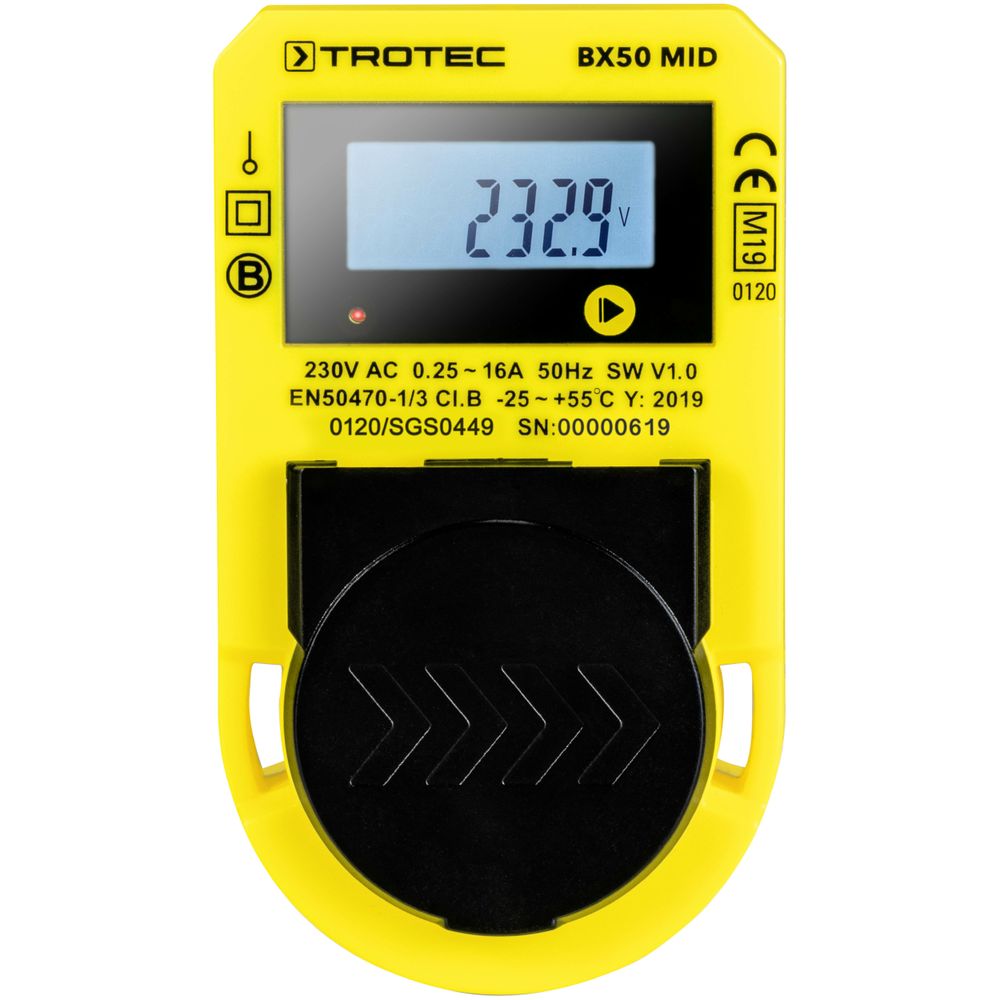

BX50 MID energy consumption measuring device

Technical data Standard scope of delivery Ascertainable measured...

You save: 19 %

20.95 £ 16.95 £ incl. VAT Show net price (VAT not included)

Price on request

Price on request

20.95 £ incl. VAT Show net price (VAT not included)

You save: 9 %

42.95 £ 38.95 £ incl. VAT Show net price (VAT not included)

Technical data
General information
Article number 3.510.205.918 3.510.205.919 3.510.205.916 3.510.205.917 3.510.205.950
Consumption measurement
Min. measuring range | Consumption measurement [kWh] 0.01 0.01 0.01 0.01 0
Max. measuring range | Consumption measurement [kWh] 9,999.9 9,999.9 9,999.9 9,999.9 999,999.875
Power [W]
Min. measuring range | Power [W] 0.1 0.1 0.1 0.1 57.5
Max. measuring range | Power [W] 3,680 3,680 2,300 2,990 3,680
Accuracy ± | Power [%] 2 2 2 2
AC voltage [V/AC]
Min. measuring range | AC voltage [V] 230 230 230 230 176
Max. measuring range | AC voltage [V] 230 230 230 230 276
Input voltage (consumer)
Voltage [V,AC] 230 230 230 230 230
Current frequency [Hz] 50 / 60 50 / 60 50 / 60 50 / 60 50
Display
LCD
Storage
yes
Recording capacity [h] 9,999.9 9,999.9 9,999.9 9,999.9
Housing design
Plastics
Measuring category
CAT II (2,500 V)
CAT III 600 V
CAT III (1,000 V)
CAT IV (600 V)
CAT II (600 V)
Safety
EN 61010-1
EN 61326-1
Degree of pollution 2
Type of protection
IP20
IP54
Power supply
Via mains voltage
External (power adapter)
External (USB)
Internal (battery)
Via measuring voltage
Ambient conditions
Operation - min. temperature [°C] 5 5 5 5 -25
Operation - max. temperature [°C] 40 40 40 40 55
Max. humidity range [%r.F.] 85 85 85 85 95
Dimensions
Length (packaging excluded) [mm] 95 95 95 95 77
Width (packaging excluded) [mm] 51 51 51 51 68
Height (packaging excluded) [mm] 70 70 70 70 118
Weight
(packaging excluded) [kg] 0.1 0.1 0.1 0.1 0.155
Standard scope of delivery
Standard scope of delivery
Measuring device
Operating manual
Ascertainable measured values and functions
Internal sensors
Power [W]
AC voltage [V/AC]
Alternating current [A/AC]
Frequency [Hz]
Power factor [cosφ]
Indication of max. electricity demand [W]
Indication of absolute consumption [kWh]
Functions and features
Consumption indication of scale of charges
Consumption indication as active power in watts
Fail-safe
Digital display of voltage (V), power (W), current (A), frequency (Hz), power factor (cos φ), max. electricity demand (W) and absolute consumption (kWh)
Tamper-proof total consumption meter
Resettable daily consumption meter
Display illumination
bidirektionale Messung

 standard equipment

 optionally available

 not available
