Mobile power distributor PV32

Mobile power distribution made easy – security and ease of handling with the PV32 from Trotec

Easy to transport

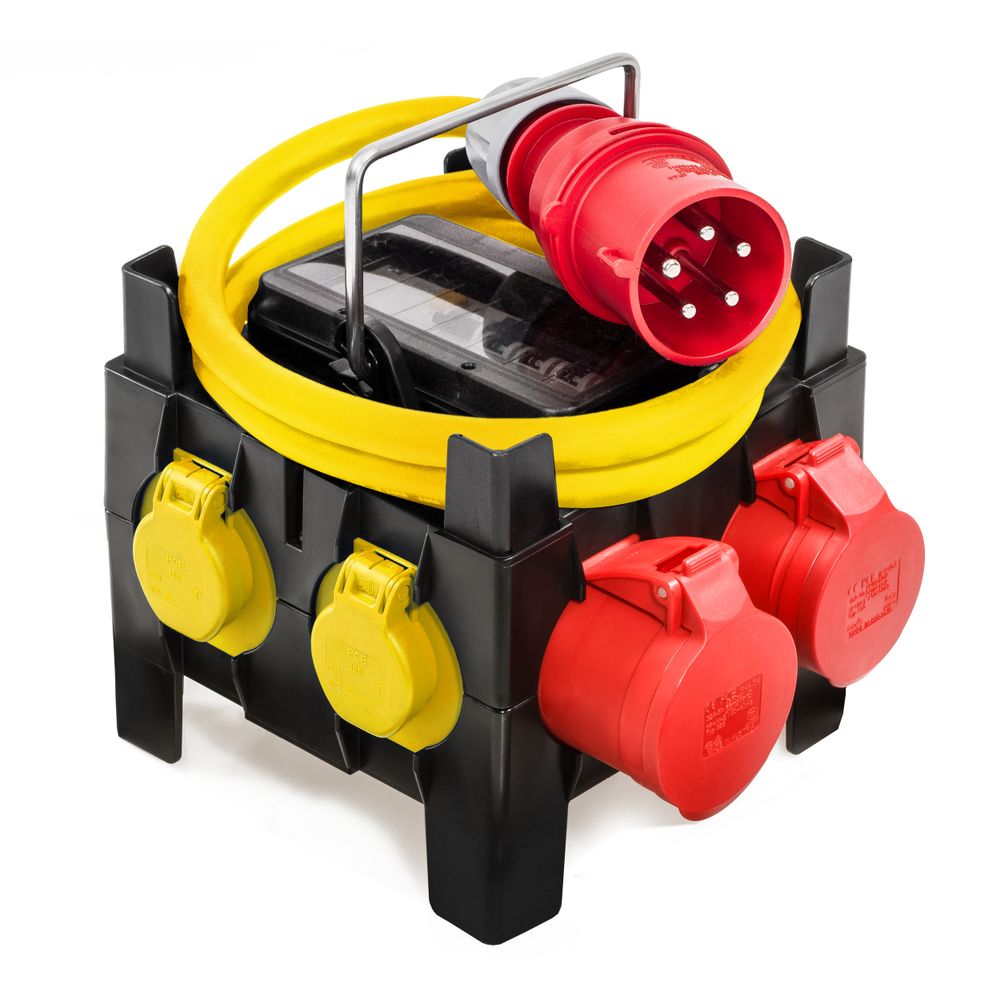

Mobile power distributor PV32 from Trotec
Mobile power distributor PV32 from Trotec
Mobile power distributor PV32 from Trotec
Mobile power distributor PV32 from Trotec
The mobile power distributor PV32 from Trotec can be used for a variety of applications
The mobile power distributor PV32 from Trotec can be used for a variety of applications
The mobile power distributor PV32 from Trotec can be used for a variety of applications
The mobile power distributor PV32 from Trotec can be used for a variety of applications

PV32 – always there and full of energy

The robust plastics mobile distributor PV32 with its IP44 type of protection is equally suitable for adverse operational environments in indoor and outdoor areas and with its two CEE sockets (32 A and 16 A, 400 V) and the three safety sockets (16 A, 250 V) can be used for a large variety of applications, for example as power current or light current distributor on construction sites, in the agricultural sector, for events, and for the industry, commercial, or camping and recreational sector.

Easy transport, space-saving storage

To ensure easy transport, the power distributor PV32 is equipped with a fold-down V2A carrying handle and a take-up facility for the 2-m connecting cable. In the warehouse, the distributors can be stacked to save space.

Special protective properties are provided by the standard residual-current-operated protective device (RCD) and the circuit breakers which are mounted in the housing cover, well protected under a visual hatch window. Furthermore, all sockets are provided with self-closing spring-loaded flap caps.





Original Trotec brand quality

With the mobile distributor PV32, you benefit from brand quality designed by Trotec. Even if some competition models seem to be very similar at the first glance, distinct differences in quality only show when you look at the details: The solid and premium quality housing of the PV32, for example, is manufactured of a special plastics material, which is characterized by its high resistance, notch impact strength, thermal stability, dielectric strength, UV resistance, chemical and weather resistance – the material used is furthermore free from cadium, red phosphorus and halogens such as fluorine, chlorine, bromine, iodine or astatine.

Plug arrangement:

  • 1 x CEE socket 32 A, 5 p, 400 V
  • 1 x CEE socket 16 A, 5 p, 400 V
  • 3 x safety socket 16 A, 250 V

Residual current device:

  • 1 x 63 A, 4 p, 0.03 A (type A 40AT)

Circuit breakers:

  • 1 x 16 A, 3 p, C and 1 x 16 A, 1 p, C

Electrical connection:

  • 2-m connecting cable H07RN-F 5G6 with CEE plug 32 A, 5 p, 400 V
Mobile power distributor PV32 in Trotec brand quality

With this equipment you are in safe hands

The power distributor PV32 is provided with two CEE sockets (32 A and 16 A, 5 p, 400 V) with self-closing spring-loaded flap caps.
Two CEE sockets (32 A and 16 A, 5 p, 400 V)
Special protective properties are provided by the standard residual-current-operated protective device (RCD) and the circuit breakers which are mounted in the housing cover, well protected under a visual hatch window.
Residual current device and circuit breakers under a visual hatch window
In addition to the two CCE sockets, the PV32 furthermore provides the option to connect a total of three safety plugs.
3 safety sockets
The stackable design of the PV32 housing allows to stack up several housings so as to save space, also in combination with the mobile power distributor PV16.
Stackable construction

A few practical benefits:

  • Socket combination as per EN 61439
    assembled with 3 CEE sockets (32 A and 16 A, 5 p, 400 V)
    and 4 safety sockets 16 A, 250 V
  • Residual current device and circuit breakers under a visual hatch window in the housing cover
  • IP44 type of protection
  • Take-up facility for connection cable
  • Fold-down V2A carrying handle
  • Stackable construction
  • All sockets with self-closing spring-loaded flap caps

Buy

Technical data

Technical data
General information
  Article number 6.100.002.076
Electric connection
  Connection plug 1 x 32 A, 5-pin, 400 V, 1 x 16 A, 5-pin, 400 V
  Number of safety sockets 3
  Residual current device 1 x 63 A, 4-pin, 30 mA (type A, 40 A (T))
  Circuit breaker(s) 1 x 16 A, 3-pole, type C, 1 x 16 A, 1-pole, type C
  Connection line H07RN-F-5G6
  Cable length [m] 2
  Cable cross-section [mm²] 6
  Rated voltage [V] 400
Safety feature
  Type of protection IP44
Ambient conditions
  Operation - min. temperature [°C] -25
  Operation - max. temperature [°C] 35
  Storage - min. temperature [°C] -25
  Storage - max. temperature [°C] 35
Functions and features
  Hinged inspection window for MCBs in housing cover
  Fold-down V2A carrying handle
  Take-up facility for connection cable
  Contact protection
Mobility
  Carry/transport handle(s)
  Feet
  stackable
Housing design
  Plastics
Dimensions
  Length (packaging excluded) [mm] 250
  Width (packaging excluded) [mm] 230
  Height (packaging excluded) [mm] 210
Weight
  (packaging excluded) [kg] 4.1

 standard equipment

 optionally available

 not available
