Show all x TDS 20 R x TDS 30 R x TDS 50 R

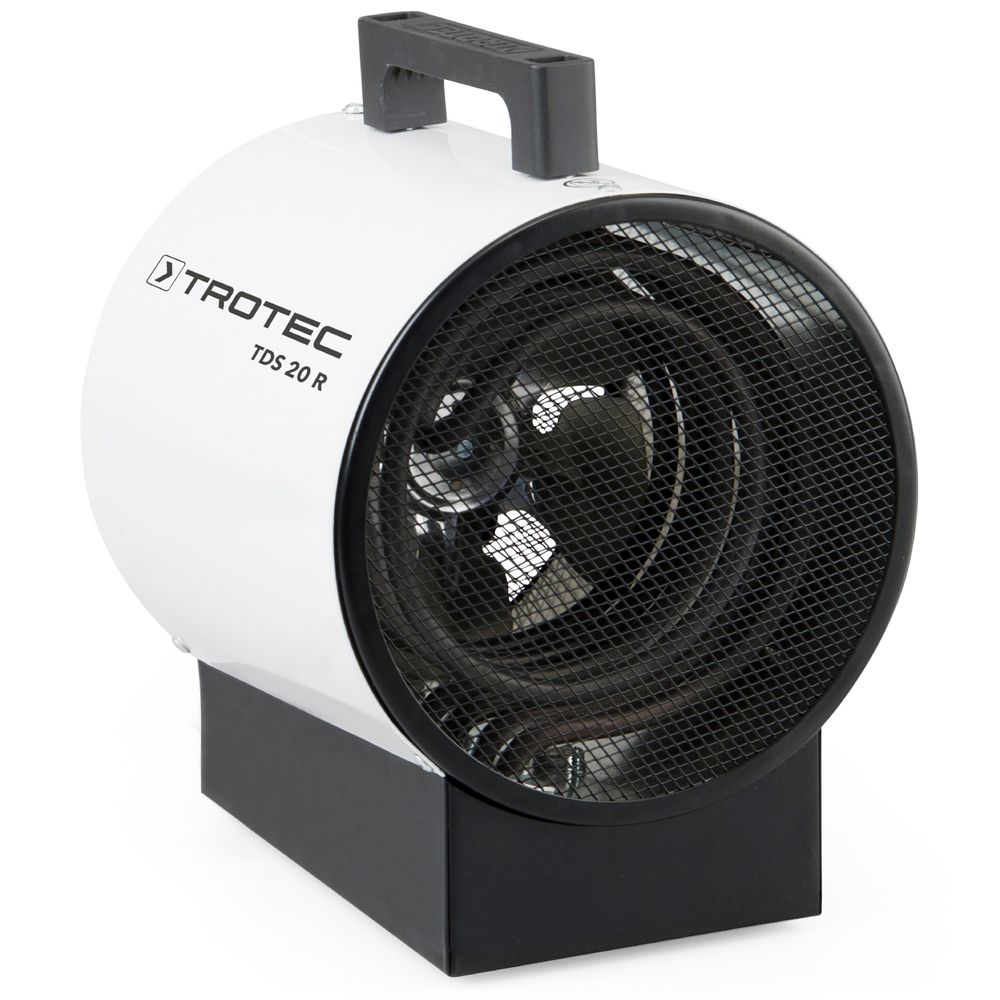

TDS 20 R
TDS 30 R
TDS 50 R

Technical data Equipment, features and...

You save: 50 %

84.95 £ 41.95 £ incl. VAT Show net price (VAT not included)

You save: 35.00 £

119.95 £ 84.95 £ incl. VAT Show net price (VAT not included)

You save: 50.00 £

159.95 £ 109.95 £ incl. VAT Show net price (VAT not included)

Technical data
General information
Article number 1.410.000.002 1.410.000.003 1.410.000.008
Heating capacity
Level 1 [kW] 0 0 0
Level 2 [kW] 1.5 2.5 4.5
Level 3 [kW] 3 5 9
Level 4 [kW]
Level Max. [kcal] 2,580 4,300 7,740
Air flow rate
Level Max. [m³/h] 411 580 844
Temperature increase
in [°C] 79 85 85
Operating range
Min. temperature [°C] -15 -15 -15
Max. temperature [°C] 25 25 25
Fans
axial
Electrical values
Mains connection 230 V, 50 Hz 400 V, 50 Hz 400 V, 50 Hz
Nominal current consumption [A] 13.04 7.22 13
Recommended fusing [A] 16 16 16
Power input [kW] 3 5 9
Electric connection
Connection plug CEE 7/7 CEE 16 A, 5-pin CEE 16 A, 5-pin
Provided by the customer
Cable length [m] 1.37 1.2 1.2
Functions and features
Auto restart function
Tilt protection
Fan rundown function
Sound values
Distance 1 m [dB(A)] 53 56 56
Safety feature
IP type of protection IP20 IP20 IP20
Hose connection
Hose connection
Dimensions
Length (packaging excluded) [mm] 210 275 350
Width (packaging excluded) [mm] 195 220 250
Height (packaging excluded) [mm] 270 330 358
Weight
(packaging excluded) [kg] 3 5 6.5
Equipment, features and functions
Operation
Thermostat
Mobility
Carry/transport handle(s)
Housing design
Metal

 standard equipment

 optionally available

 not available
